## Geometry panel |

Geometry panel

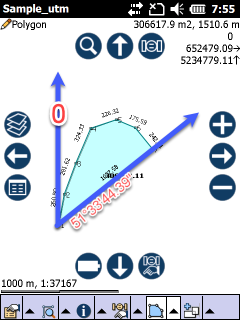

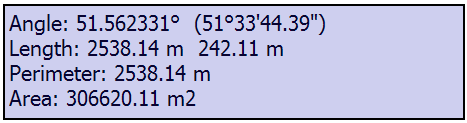

oAngle: Azimuth of the start point and the endpoint defined section in the feature, measurement

oLength: Length of the geometry in current length unit. The second value means the length between two last vertices in the current length unit

oPerimeter: Perimeter of the geometry in current length unit

oArea: Area of the geometry in current area unit

oVertex: ID of the vertex

oEasting: Easting coordinate of the vertex

oNorthing: Northing coordinate of the vertex

oHeight: Height of the vertex

Select the vertices in the list then use [Ctrl]+[C] to copy and then [Ctrl]+[V] to paste the selected values into e.g. a text editor

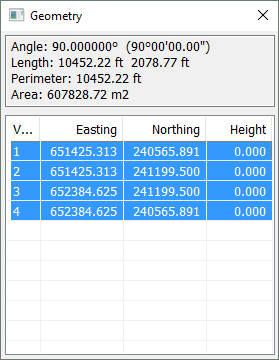

Selected vertices

Pasted vertices in Notepad
