Document panel

Document panel is used to capture a picture with the builtin camera of the Mobile device and store the path of the picture in a document field type data field. Document panel is also used when you want to add an OLE object (file) to a datafield by manually, open or clear the linked document.



The Document panel contains the following controls:



form_attach



Document panel

document



Document file: Shows the name of the linked file.



 Open document  - Opens the linked document in the associated viewer/application.



 Select document  - Opens the Document File panel to select an OLE object.



 Start Digital Camera  - Starts the builtin camera and opens the associated Image Capture application to take a picture. The created picture will be saved beside the layer file.

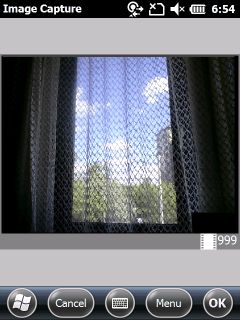

Image Capture dialog

captured_photo



 Clear document  - Clears the path of the previously linked document.



 Close  - Closes the dialog.
