List handling on the Classes panel

<< Click to Display Table of Contents >>

Navigation:  Thematic classification >

List handling on the Classes panel

The following list handling used on the Classes panel:

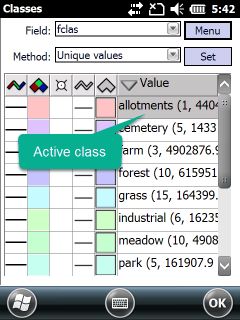

The list handling area on the Classes panel

list_handling_on_the_classes_dialog



Line colour



•Tap on the row: Opens the Line colour colour palette to set the line colour.

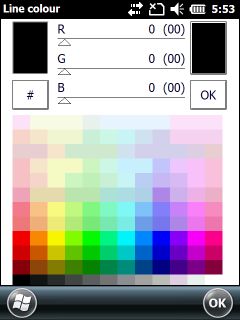

The Line colour palette

line_color



•Tap on the dtClassLCol  header: Sets the line colour of all classes under the current (active) class to the line colour of the current (active) class.

•Drag: Drag the current line colour and set this line colour to all marked classes.



Fill colour



•Tap on the row: Opens the Fill colour colour palette to set fill colour.

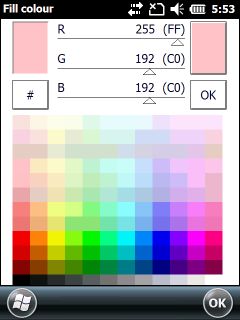

The Fill colour palette

fill_color



•Tap on the dtClassFCol header: Sets the fill colour of all classes under the current (active) class to the fill colour of the current (active) class.

•Drag: Drag the current fill colour and set this fill colour to all marked classes.



Symbol



•Tap on the row: Opens the Symbol panel to select symbol. There is no drawing in case of null symbol (Bitmap 0) selection.

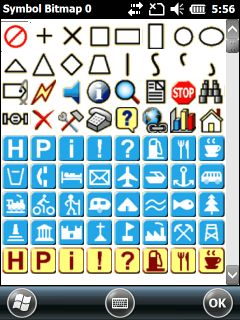

The Symbol panel

symbol_dialog_box



•Tap on the dtClassSymbol header: Sets the symbol of all classes under the current class to the symbol of the current class.

•Drag: Drag the current symbol and set this symbol to all marked classes.



Linetype



•Tap on the row: Select linetype. There is no drawing in case of null linetype (Bitmap 0) selection.

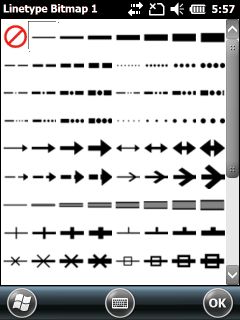

The Linetype panel

linetype



•Tap on the dtClassLType header: Set the linetype of all classes under the current class to the linetype of the current class.

•Drag: Drag the current linetype and set this linetype to all marked classes.



Filltype



•Tap on the row: Select filltype. There is no filling in case of null filltype (Bitmap 0) selection.

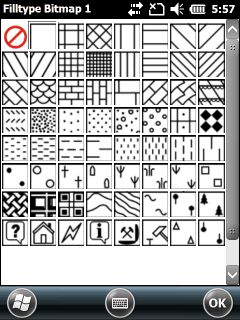

The Filltype panel

filltype



•Tap on the dtClassFType header: Set the fillpattern of all classes under the current class to the fillpattern of the current class.

•Drag: Drag the current fillpattern and set this pattern to all marked classes.







Value



Tap on the row: Opens the Class panel to set the value range, label, Display scale and the label scale of the selected class.

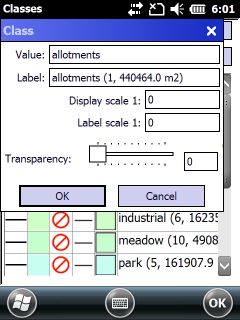

Settings of the thematic class

edit_thematic_class



Class panel



Value: Cell value of the selected data field to the thematic classification.

Label: Shows the textual value of the code dictionary (if exists) and the number of features in this class as default. Displays in the legend of the printed map.

Display scale: Enables you to define a display scale to the current thematic class. Default is "1:0", displays the thematic class at all scales.

Label scale: Enables you to define a label scale to the current thematic class. Default is "1:0", displays the labels of the thematic class at all scales.
