Polygon Join

<< Click to Display Table of Contents >>

Navigation:  Menu and toolbars > Tools menu >

Polygon Join

dtToolAreaJoin Polygon Join

Deletes the boundary line between two polygons and create a new polygon. Once you selected the boundary line between the polygons TopoLynx topoXplore opens the Area join panel to select which attribute data record you want to store to the new polygon. Please, note that all geometry based data field will be recalculated in the new polygon's data record. The boundary line can be selected when the identify button turned on for the edited layer in the Layers panel.



Tap / Left click: selects boundary line.

Drag:  selects boundary line (drags selection point) on the map with displayed crosshairs.



The Polygon Join remains active until another tool is activated.

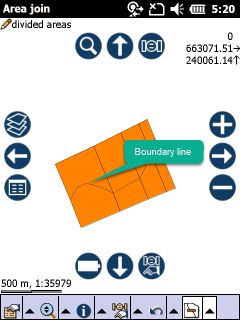

Boundary line between two polygons

area_join

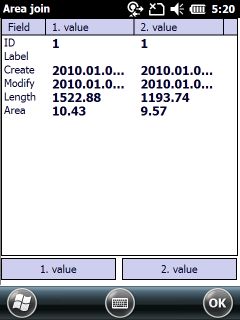

Area join panel

area_join_dialog

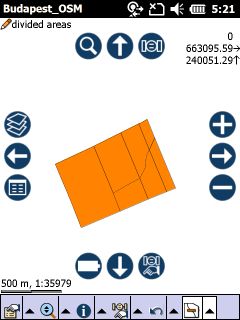

Joined new polygon

area_join-result



k-tip-iconThe Polygon Delineation and the Polygon Join can be stored when editing is turned on for the edited polygon layer in the Layers panel. If the attribute table contains data fields with geometry related default value, the cell value of current data field will be updated after you have applied the Polygon Delineation or the Polygon Join tool.



k-tip-iconThe last topological edit operation can be undo by using the dtToolUndo Undo tool that you made to a feature with the Polygon Join tool.
