Connection Management

This dialog is accessible from the Online Data Sources tool > Connections tab with the New, Copy and Modify buttons. The Connection Management panel contains the following controls:

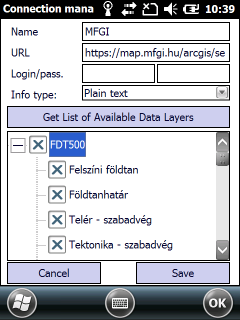

Connection Management panel



Name: enter the name of the service


URL: enter the 'Get Capabilities' Address of the WMS service


Login name: enter the optional login name to access the service


Password: enter the optional password to access the service


 Get List of Available Data Layers  - queries the available data layers at the Server URL


Data Layers list: list the available WMS/WMTS/WFS data layers to select and define the background map layer. Multiple layers can be selected.


 Cancel  - closes the panel


 Save     - saves the entered parameters with the selected data layers in the list
