Insert Vertex

<< Click to Display Table of Contents >>

Navigation:  Menu and toolbars > Edit menu > Edit vertex sub-menu >

Insert Vertex

dtToolAddVertex Insert

This tool is designed for quickly selecting a feature and then insert new vertices into the existing geometry. The Insert tool remains active for adding new vertices into a selected feature until another tool is activated.



Tap / Left click: selects feature on the map at the tapped location for vertex editing mode then you can insert new vertices among two vertices in the selected geometry

Drag / Left drag: moves the selected vertex using crosshairs

Tap and hold / Right click: opens the New Vertex panel or the Existing Vertex panel if you started the Tap and hold / Right click over existing vertex



Possible use cases

•In case of point feature and MAP - TopoLynx vector layer format the new geometry will be a multipoint geometry

•In case of line or polyline adds new vertices into the existing geometry

•In case of polygon adds new vertices into the existing geometry



Inserting new vertex

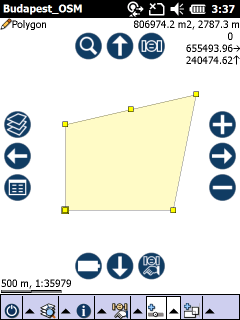

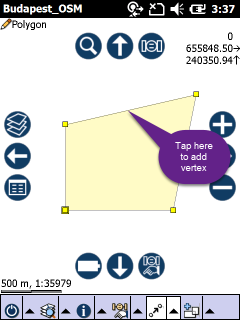

InsertVertex InsertVertexResult



See also

k-tip-iconThe multipoint geometry can also be created with the Point editing tool, but you cannot convert existing point feature to multipoint

k-tip-iconThe multipoint geometry can also be created with the dtToolNewPart New part tool and you can also convert an existing point feature to multipoint

k-tip-iconThe multipoint geometry can be converted from the selected existing point features with the dtToolMerge Merge tool

k-tip-iconThe feature will be immediately in vertex editing mode if you pre-selected it with the dtToolInfo Identify command prior to activating the dtToolAddVertex Insert tool
